KYD-950+ Full Auto Row by Row Stripping Machine | Industrial Automation Solution

Introduction

In the fast-paced world of industrial manufacturing, efficiency and precision are paramount. The KYD-950+ Full Auto Row by Row Stripping Machine represents a significant leap forward in post-die-cutting technology, offering an integrated solution that combines automatic waste removal, product collection, and scrap discharge in one compact system.

Key Features and Benefits

Full Servo System

The KYD-950+ utilizes a state-of-the-art full servo system that ensures precise and consistent performance throughout the production process. This advanced technology allows for:

• High Precision: Accurate positioning and control for delicate and intricate products
• Energy Efficiency: Reduced power consumption compared to traditional hydraulic systems
• Quiet Operation: Minimal noise pollution in the workplace
• Longer Lifespan: Reduced wear and tear on mechanical components

Auto Collection Function

One of the standout features of the KYD-950+ is its automatic product collection system, which significantly reduces labor costs and improves overall efficiency. The system:

• Automatically collects finished products after the stripping process
• Eliminates the need for manual sorting and handling
• Reduces the risk of product damage during collection
• Improves workplace safety by minimizing human interaction with moving machinery

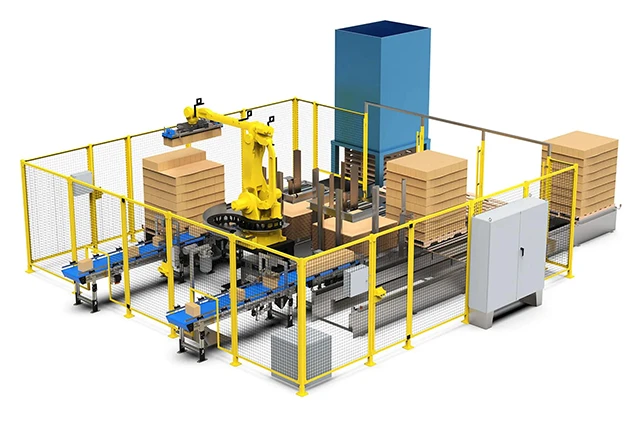

Palletizing System

The integrated palletizing system further enhances the machine's efficiency by automatically stacking finished products onto pallets. This feature:

• Saves time and labor costs associated with manual palletizing
• Ensures consistent and stable stacking of products
• Allows for easy transportation and storage of finished goods
• Can handle pallet heights up to 1 meter

Non-Stop Operation

The KYD-950+ is designed for continuous production, minimizing downtime and maximizing output. With a cycle speed of up to 4 times per minute, this machine can handle high-volume production requirements with ease.

Machine Details

Overall Frame

The KYD-950+ features a simple and sturdy overall frame that occupies minimal floor space while providing exceptional stability during operation. The compact design makes it suitable for a wide range of factory layouts.

Vane Type Hydraulic Pump

Equipped with a vane type hydraulic pump and cooling fan, the machine maintains stable working pressure throughout the production process. The 60L oil tank and 3.75KW motor ensure reliable performance even during extended production runs.

Servo Motor and Ball Screw

The combination of servo motors and ball screws ensures precise pile positioning, allowing for accurate and consistent stripping of products. The 1.5KW feeding servo motor provides smooth and reliable material handling.

Upper Pressing Plate Press

The upper pressing plate presses on the waste part while lower pins support the product part, ensuring clean and precise waste removal with a minimum waste gap of just 3MM.

Auto Products Collection Function

The automatic product collection system, powered by a 0.75KW servo motor, efficiently collects finished products and reduces labor costs associated with manual handling.

Servo-Controlled Aluminium Rollers

Servo-controlled aluminium rollers ensure stable product transfer to the conveyor table, minimizing the risk of product damage during handling. The 0.75KW deliver servo motor provides consistent and reliable performance.

Rotating Touch Screen

The machine features an intuitive rotating touch screen interface that allows operators to easily adjust settings and monitor production parameters. The user-friendly interface reduces training time and improves overall operational efficiency.

Auto Palletizing Part with Auto Lifting

The auto palletizing system with auto lifting capability saves time and labor costs by automatically stacking finished products onto pallets. The system can handle pallet heights up to 1 meter, making it suitable for a wide range of production requirements.

Frequently Asked Questions

What is a Row Stripping Machine best used for?

A Row Stripping Machine is specifically designed for high-volume stripping of small items arranged in rows on a die-cut sheet, such as hang tags, labels, playing cards, and small packaging components. It efficiently removes the waste matrix while leaving the individual products intact for easy collection.

How is it different from a full-page stripping machine?

A Row Stripping Machine focuses on processing individual rows of smaller products on a sheet. It is typically more compact and cost-effective, making it ideal for specialized, high-volume small-item production. A full-page machine handles the entire sheet at once and is often geared toward larger products like full-size boxes.

What are the main benefits of using a Row Stripping Machine?

• High Speed: Optimized for rapid cycling, significantly increasing output for small items
• Precision: Ensures clean, accurate stripping of delicate or intricate small parts
• Labor Savings: Dramatically reduces the time and effort required compared to manual separation
• Cost-Effectiveness: Offers a targeted solution for small-item production at a lower investment than larger, full-format machines

Is it easy to change over for different jobs?

Yes. Most models feature quick-adjustable stripping tools and guides, allowing for fast changeover between different product sizes and layouts, minimizing downtime.

How long is the delivery time?

Normally it's 7-10 days.

Conclusion

The KYD-950+ Full Auto Row by Row Stripping Machine represents a significant advancement in post-die-cutting technology. With its advanced servo system, automatic collection function, and integrated palletizing system, this machine offers a comprehensive solution for manufacturers looking to improve efficiency, reduce labor costs, and enhance product quality.

Whether you're producing hang tags, labels, or packaging components, the KYD-950+ is designed to meet the demands of high-volume production while maintaining the precision and consistency required for delicate and intricate products.Please feel free to contact us if needed.
