| Maximum paper size | 1080 x 780 mm |
| Max Material Stack Height | 80mm |
| Waste clearing speed | 1-5 times per minute |

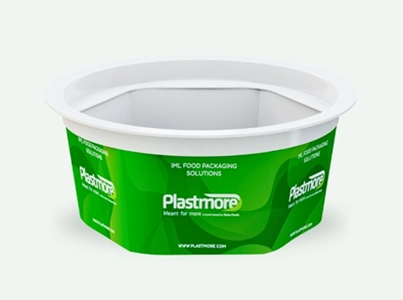

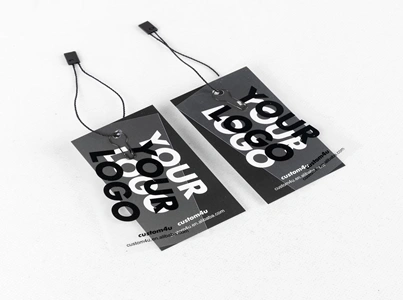

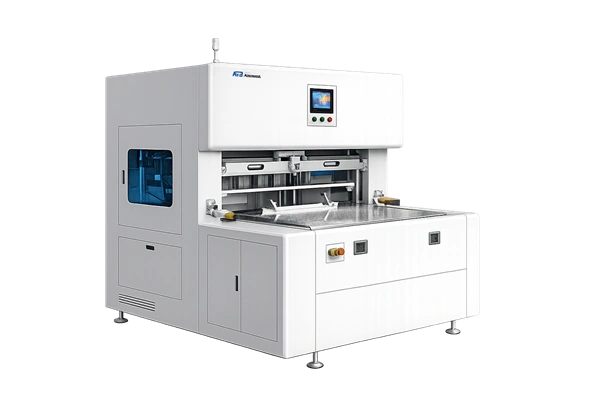

The KYD-1080 NEW Semi-Auto Stripping & Blanking Machine is engineered to solve the most challenging post-die-cut waste removal for plastic materials – including blister cards, transparent plastic boxes, IML containers, plastic hangers, and PVC/PET packaging. Unlike traditional methods that risk scratching or deforming plastics, our patented upper/lower pin system applies controlled pressure only on waste areas, leaving finished products pristine.
For plastic & blister packs: Precision pins + rubber heads protect glossy surfaces from scratches.

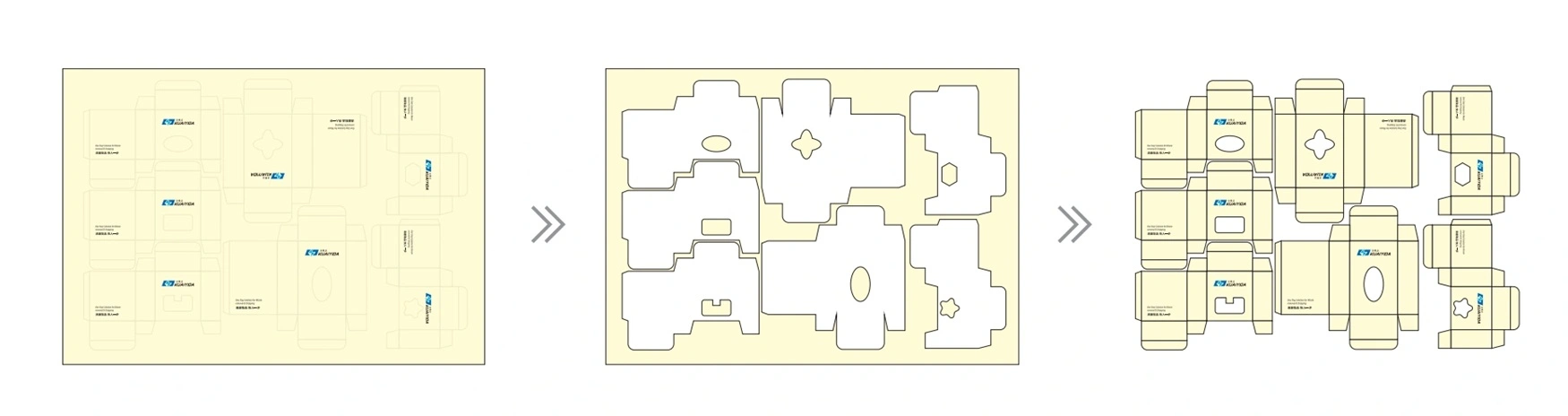

One-pass complete waste removal: Stripping & blanking in single cycle, no secondary handwork.
No mould investment: Adjustable honeycomb pin system fits various box shapes, windows, aircraft holes.
Labor & tool cost saving: Replaces 3–5 manual strippers, reduces mould expenses dramatically.
Semi-auto operation + Touchscreen: Easy parameter setting, quick job changeover.
Upper & Lower Pin System (Scratch-Free)
1.Upper pins (waste removal): Ø5mm × 500pcs + Ø3mm × 50pcs – rubber head protects plastic surface.
2.Lower pins (product support): Ø12mm × 500pcs + Ø8mm × 50pcs – holds product firmly during stripping.
3.Flexible arrangement – honeycomb plate allows pin repositioning to match any shape (windows, holes, irregular contours).
4.Suitable for thin plastic sheets (0.2mm+) up to 80mm stack height.
Intelligent & Operator-Friendly

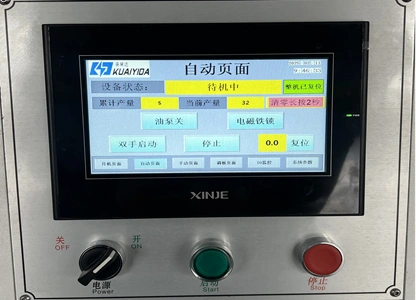

1.Touch screen control (XINJIE TG765S-XT) – store recipes for different products.

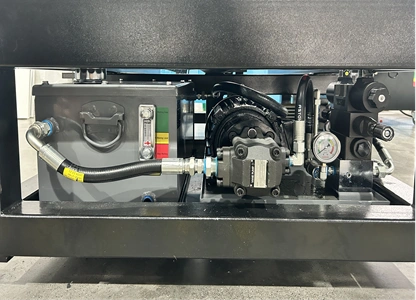

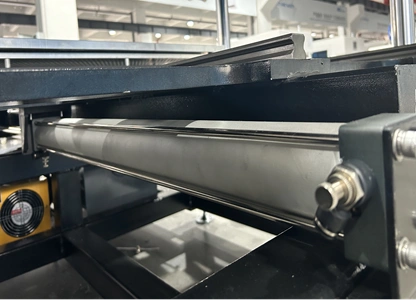

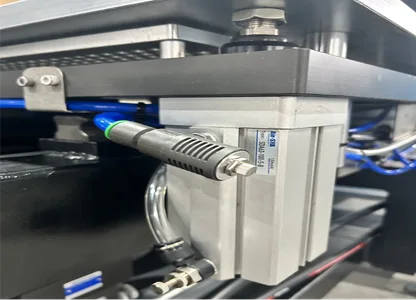

2.Hydraulic main drive + pneumatic lower table movement – smooth and powerful.

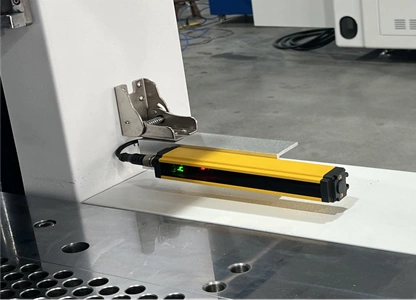

3.Product sensing grating: lower table auto-lifts after product removal for easy waste clearance.

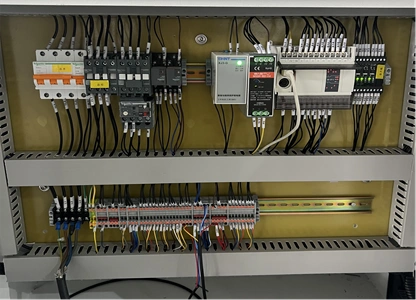

4.Clear wiring, CE-configuration components, emergency stop and safety light curtain.
| Model | KYD-1080 |
|---|---|
| Max Material Stack Size | 1080 × 780 mm |
| Max Product Size | 1060 × 760 mm |
| Min Product Size | 35 × 35 mm |
| Max Material Stack Height | 80 mm |
| Max Pressure | 100 KN |
| Speed | 1–5 times/min |
| Total Power | 4 KW |
| Average Power | 2.8 KW |
| Air Consumption | 65 L/min |
| Air Pressure | 0.5–0.6 Mpa |
| Voltage | 380V / 3 phase / 50Hz |
| Machine Dimension | 2100 × 1760 × 1700 mm |
| Weight | 2580 KGS |
We also provide complementary equipment to help you maximize your benefits. Contact us today, and our technical experts will deliver a customized solution tailored to your needs.
— Technical Manager, Turkey
— Vietnam Printing & Packaging
— Production Manager, Spain
— Technical Manager, Turkey
|
Core Competency |
Manual feeding + automatic waste removal |
|
Suitable Scenario |
Irregularly shaped products |
|
Minimum Product Size |
35X35mm |
|
Waste Removal Speed |
1-5 times/min |
| Core Competency | Auto Collection |
| Suitable Scenario | Packaging |
| Minimum Product Size | 100*80mm |
| Waste Removal Speed | 2-3 times/min |
| Core Competency | Economical waste disposal solutions |
| Suitable Scenario | Basic packaging box |
| Minimum Product Size | 35X35mm |
| Waste Removal Speed | 1-5 times/min |
