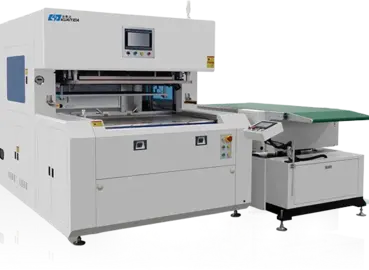

Double Function Semi-auto Stripping & Blanking Machine
KYD-1080A

Double Function Semi-auto Stripping & Blanking Machine

The dual-station mode is suitable for window opening and irregularly shaped products.

Max. Product Size

1060*760mm

Mini. Product Size

 35mmX35mm

Speed

1-5 times/min
Get Free Quote Download
$text.title}
Description Application Die Layout Drawing Technical Parameters Machine Details

Description

This automatic stripping & blanking machine has a powerful waste removal function completely with full-page blanking and row blanking functions, which can achieve one pass fully remove all waste after die cutting for different specifications of box types, windows, and aircraft holes, and material waste edges of front and back stitching as long as they are within the size requirements of machine.This machine have the high quality for removing the waste completely in one pass, with fast efficiency, simple operation, increasing user’s production capacity.



Row Stripping & Full Stripping with Double Function

No Need to Change Mould

Completely Removing Waste

High Efficiency in One Pass

  • Customizable
  • Test Machine Available
  • Wooden case packaging, suitable for all logistics

Application

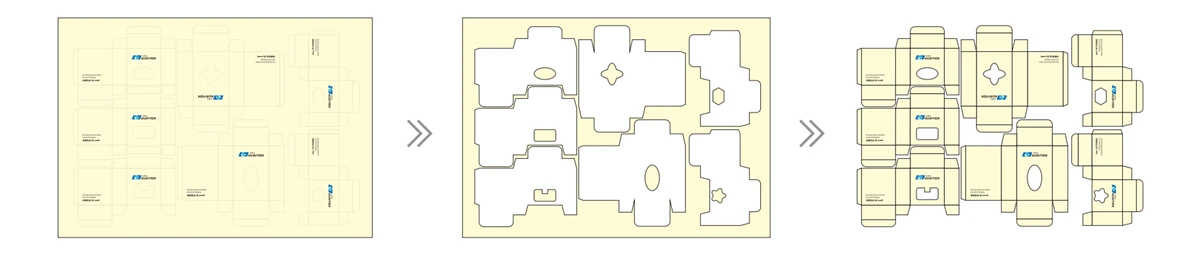

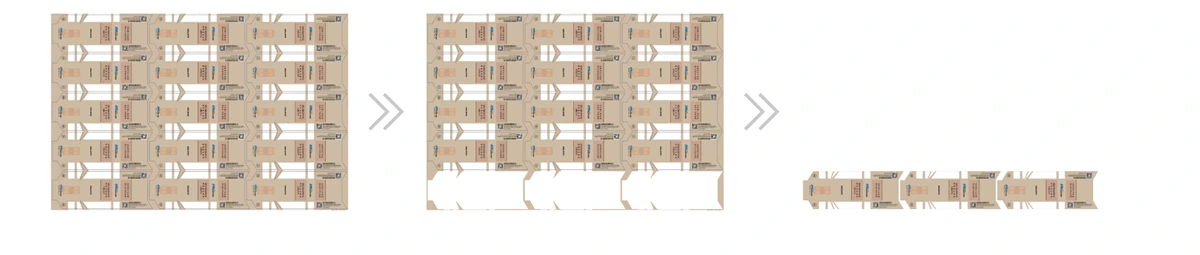

Die Layout Drawing

Technical Parameters

Model

KYD-1080A

Max Material Stack Size

1080*780MM

Maximum Product Size

1060mmX760mm

Minimum Product Size

35mmX35mm

Max Material Stack Height

80MM

Max Pressure

150KN

Speed

1-5 times/min

Total Power

9KW

Power

380V/3 phase/50HZ/10KW

Air Consumption

2L/min

Compressed Air

5-6 Bar

Machine size

2650mmX1800mmX2000mm

Weight

3000 KGS

Machine Details

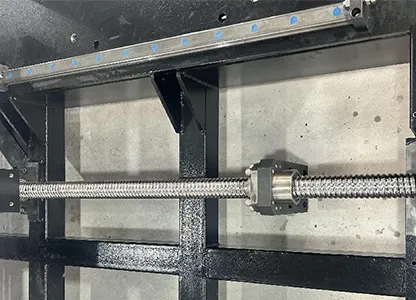

Servo motor

Servo motor

Servo motor drive the 50mm diameter Lead screw to make sure the working table In & Out motion it is high stability and precise.

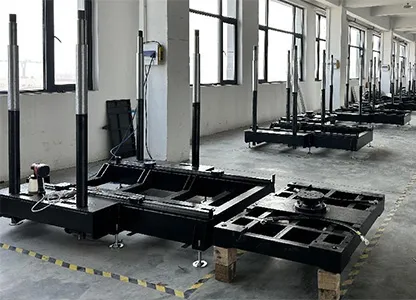

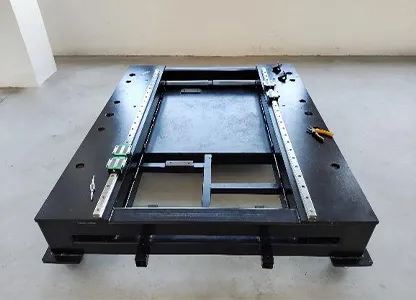

Machine use high strong structure

Machine use high strong structure

High precision frame of machine is more strong and ensure the machine main body strong loads.
Machine use high strong structure

Machine use high strong structure

4 pcs of 80mm diameter main frame Pipe can hold 80tons pressure.

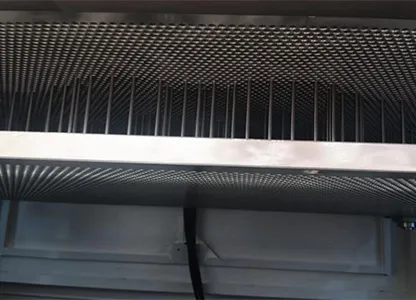

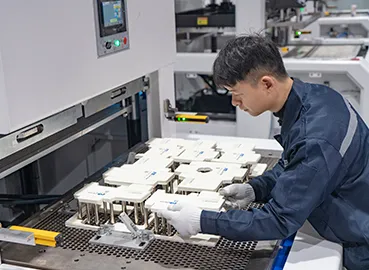

Whole Blanking Function

Whole Blanking Function

Through Upper and Lower Pins to press and remove the waste of product with one time, Not need any mould for different size & different shape of box.
Upper pins to remove the waste parts.
Diameter: 5mm & 3mm
Lower pins to hold the products part.
Diameter:12mm & 8mm

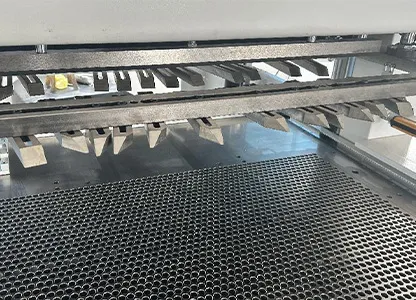

Row Stripping Function

Row Stripping Function

Upper metal fingers to press on the waste part & not-working part
Lower pins to hold the products part . Lower Pins diameter: 12mm & 8mm

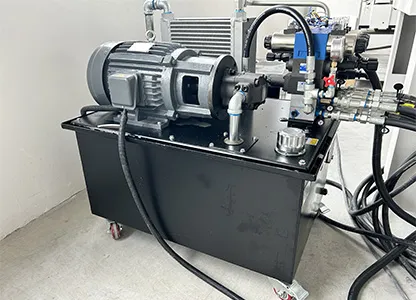

Vane type hydraulic pump

Vane type hydraulic pump

Machine use the Vane type hydraulic pump to make sure the stability of machine working pressure.

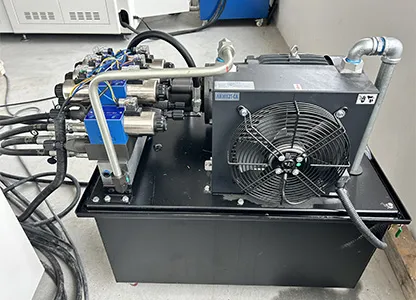

Vane type hydraulic pump

Vane type hydraulic pump

Machine use the Vane type hydraulic pump to make sure the stability of machine working pressure.

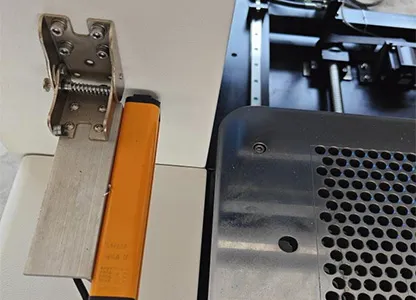

Grating protector

Grating protector

High protections of installed Grating protector, with CE standard.

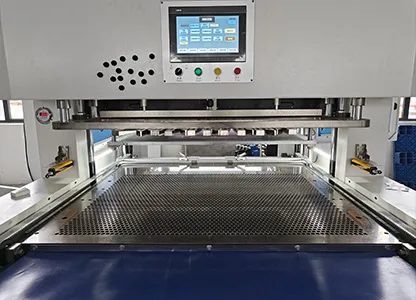

High protections

High protections

High precision sensor on the feeding 2 side for protecting, and double OFF/ON buttons operation.

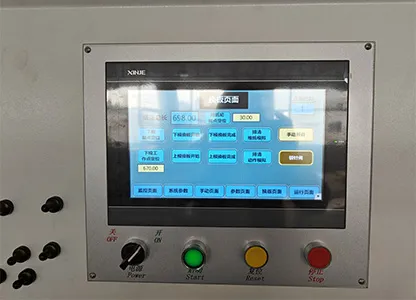

Touch Screen

Touch Screen

Touch Screen to operate machine, easy adjust machine and set new data working

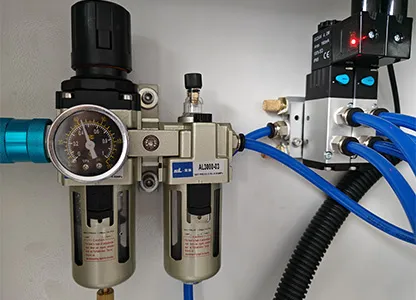

Cylinder

Cylinder

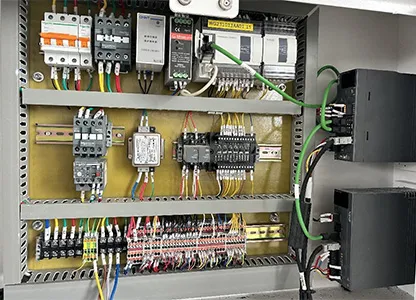

Electrical part

Electrical part

What Our Clients Say

“Two years of operation with zero downtime. Their after-sales support is always prompt.”
— Technical Manager, Turkey
“Quick changeover in 5 minutes makes small-batch production profitable for us.”
— Vietnam Printing & Packaging
“The auto collection and palletizing saved us two workers per shift. It runs non-stop with zero issues.”
— Production Manager, Spain
“Two years of operation with zero downtime. Their after-sales support is always prompt.”
Technical Manager, Turkey — Technical Manager, Turkey

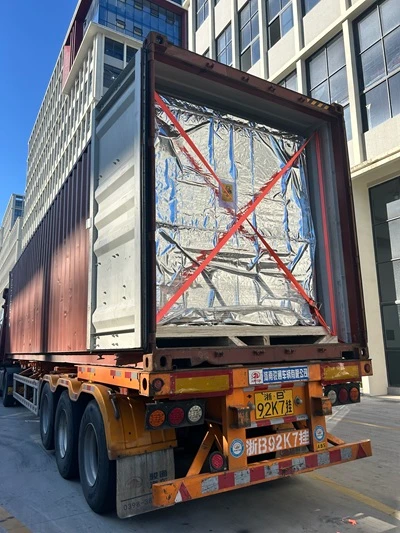

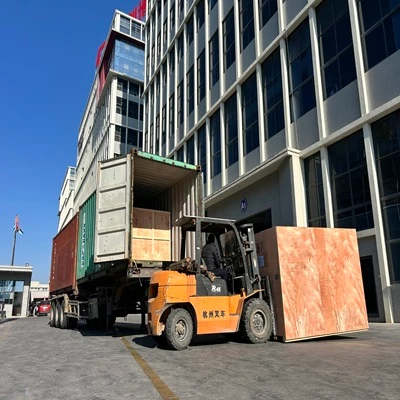

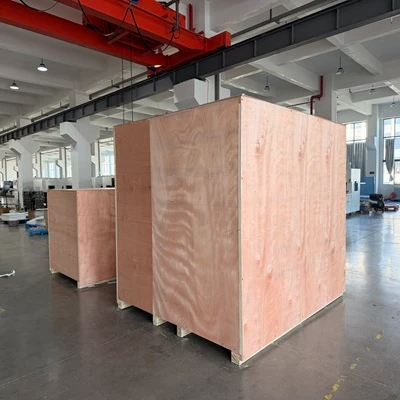

Packaging & Shipping

Your Lifelong Productivity Partner: Backed by 24/7 support, full warranty, and OEM parts.
Get A Quote

FAQs Related to Full Page Blanking Machine

Can the machine be customized for unique production needs?

Yes, customization is a key service we offer. Common customizations include extended stacking systems, integration with existing production lines, and custom stripping plate designs for highly irregular shapes.

How accurate is the blanking and stripping process?

Our machines achieve a high positional accuracy, typically within ±0.2mm. This ensures that products are cleanly separated with smooth edges and that registration for subsequent processes is maintained precisely.

Do you offer the solution for clients?

Yes, according to your special requirement, we will offer full solution.

How do you pack the equipment?

We pack the equipments with vaccum bag and plywood case.

What are the key advantages over manual waste removal?

Dramatically increased efficiency, superior product quality, reduced labor costs, and enhanced worker safety.
Fill out the form to receive a personalized solution and quote.

Related Products

Double Function Semi-auto Stripping & Blanking Machine
KYD-1080A

Double Function Semi-auto Stripping & Blanking Machine

Core Competency

 Manual feeding + automatic waste removal

Suitable Scenario

 Irregularly shaped products

Minimum Product Size

 35X35mm

Waste Removal Speed

 1-5 times/min

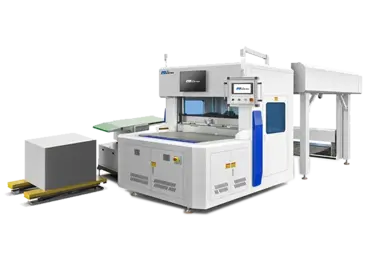

Automatic Full Page Stripping & Blanking Machine
KYD-1080E

Automatic Full Page Stripping & Blanking Machine

Core Competency Auto Collection
Suitable Scenario  Packaging
Minimum Product Size 100*80mm
Waste Removal Speed 2-3 times/min
Semi-automatic Full Page Stripping & Blanking Machine
KYD-1080/1300

Semi-automatic Full Page Stripping & Blanking Machine

Core Competency Economical waste disposal solutions
Suitable Scenario Basic packaging box
Minimum Product Size 35X35mm
Waste Removal Speed 1-5 times/min

Related Articles

07-24 2026

Servo Systems & Auto Collection: The Mechanics of Waste Stripping.

Inconsistent waste stripping and manual scrap collection remain major bottlenecks in post-press workflows.
07-18 2026

Solving Irregular Product Waste with Die-Cut Waste Removal.

Discover how automated sheet-fed stripping and blanking solutions eliminate the bottleneck of irregular die-cut waste. Learn the key techniques, compare methods, and find out how to achieve zero-waste finishing without manual picking.
07-10 2026

Understanding Stripping & Blanking: Key Technical Principles

Explore the fundamental principles behind stripping and blanking in die-cutting. Learn how tooling, substrate characteristics, and machine configuration affect separation quality, and discover ways to minimize downtime in high-speed sheet-fed converting.
07-03 2026

Stripping vs. Blanking: Key Differences in Post-Press Finishing

Confused about stripping and blanking in die-cutting? This guide breaks down the key differences, typical use cases, and how to choose the right post-press separation strategy to eliminate bottlenecks. Learn which method fits your packaging workflow.
06-25 2026

Avoid These 5 Mistakes When Selecting Packaging Waste Stripping Systems

Avoid costly errors when investing in packaging waste stripping equipment. This guide breaks down five common mistakes—from confusing stripping with blanking to ignoring total cost—and shows ypackaging waste stripping equipment, die-cutting scrap removal mistakes, sheet-fed stripping system, full-sheet blanking guide, blanking machine buying errors, Kuaiyida stripping solutionou what to look for in a reliable, high-throughput waste removal system.
06-17 2026

Full Page vs. Row Blanking: A Detailed Die-Cut Waste Removal Test.

We put full-page and row blanking methods to a head-to-head test. Explore real data on stripping success rates, cycle times, and material compatibility to determine which waste removal strategy will actually reduce your bottleneck in label and packaging converting.
06-10 2026

5 Common Mistakes When Buying Packaging Waste Stripping Equipment

Avoid costly purchasing errors when investing in packaging waste stripping equipment. This guide covers the five most common mistakes—from ignoring material compatibility to underestimating automation needs—and shows you how to choose a system that scales with your production.
06-04 2026

What is Die-Cut Waste Removal? A Complete Guide for Printers

Die-cut waste removal is a critical bottleneck in print finishing. This guide covers manual vs. automated methods, key challenges, and how to choose the right stripping and blanking solutions for higher throughput and accuracy.
05-27 2026

Solving Complex Die-Cut Waste Issues with Modern Technology

Complex die-cut waste slows production, damages products, and risks operator safety. Explore how modern automation tackles the hardest stripping and blanking challenges—boosting yield, cutting downtime, and future-proofing your finishing line.
05-21 2026

The Evolution of Packaging Waste Stripping: From Hammer to Automation.

Explore how packaging waste stripping has evolved from manual hammers to advanced inline automation. Learn why converters are switching to intelligent stripping solutions, the key differences between traditional and modern methods, and how the right equipment can eliminate bottlenecks without sacrificing flexibility.

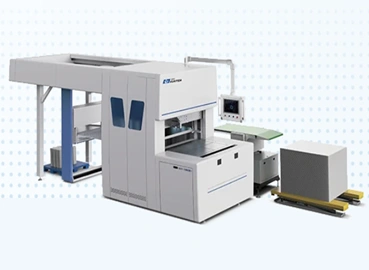

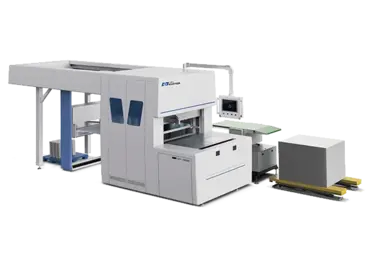

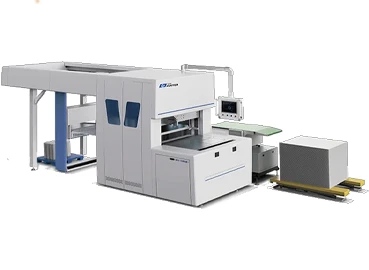

Automatic Full Page Blanking & Stripping Machine
