Semi-automatic-Full-Page-Stripping-&-Blanking-Machine
KYD-1080/1300

Semi-automatic Full Page Stripping & Blanking Machine

This equipment provides an economical waste removal solution for basic packaging.
Maximum paper size 1080 x 780 mm
Minimum product dimensions 35 x 35 mm
Waste clearing speed 1-5 times per minute
Get Free Quote Download
$text.title}
Description Application Die Layout Drawing Technical Parameters Machine Details

Description

The KYD‑1080 Semi‑auto Stripping & Blanking Machine delivers a highly cost‑effective solution for complete waste removal after die‑cutting. Designed to handle various box styles, windows, and custom cut‑outs in a single pass—without the need for mold changes—it significantly lowers operational expenses while boosting productivity. With its simple setup, touch‑screen control, and reliable pin‑based stripping system, the KYD‑1080 is an efficient choice for packaging producers seeking to reduce labor, tooling, and material‑handling costs.



Labor Saving

Completely Removing Waste

No Need to Change Mould

Fast Setup & Easy Operation

  • Customizable
  • Test Machine Available
  • Wooden case packaging, suitable for all logistics

Application

Die Layout Drawing

Die Layout Drawing

Technical Parameters

Model

KYD-1080

Max Material Stack Size

1080*780MM

Max. Product Size

1060*760MM

Mini. Product Size

35*35MM

Max Material Stack Height

80MM

Max Pressure

100 Bar

Speed

1-5 Times/min

Total Power

4KW

Average Power

2.8KW

Air Consumption

65L/min

Air Press

0.5-0.6Mpa

Voltage

380V/3 phase/50HZ/

Machine size

2100X1760X1700mm

Weight

2580KGS

Machine Details

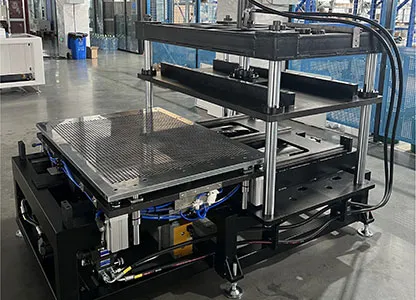

Overall Frame

Overall Frame

The overall frame is simple and firm,and occupies a small area.

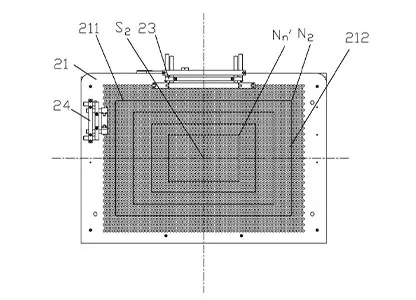

Upper & Lower Honeycomb Panels

Upper & Lower Honeycomb Panels

We have a patent for the coordinates of the upper & lower honeycomb panels, which makes positioning more accurate and panel adjustment more time-saving.

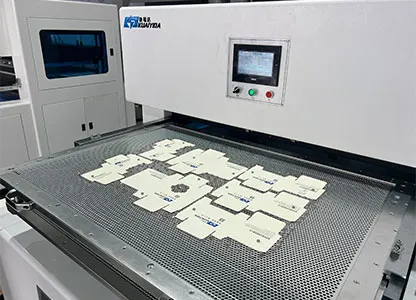

Upper Working Plate

Upper Working Plate

Through Upper and Lower Pins to press and remove the waste of product with one time, Not need any mould for different size & different shape of box.

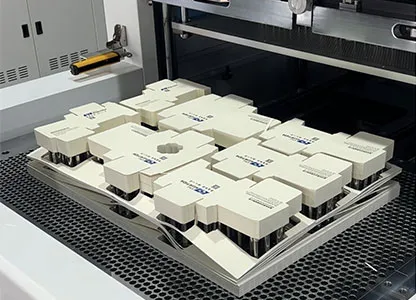

Upper Pins

Upper Pins

Upper pins to remove the waste parts.
Diameter:  5mm* 500pcs
Diameter:  3mm *50pcs

Lower pins to hold the products part.
Diameter:  12mm* 500pcs
Diameter:  8mm * 50pcs

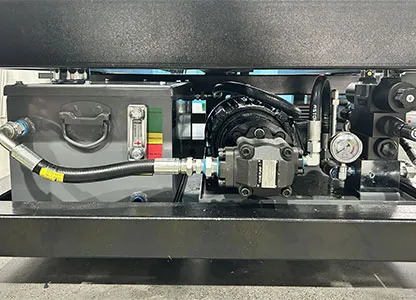

Hydraulic Oil system

Hydraulic Oil system

Hydraulic Oil system to control the Up & down of upper working panel.

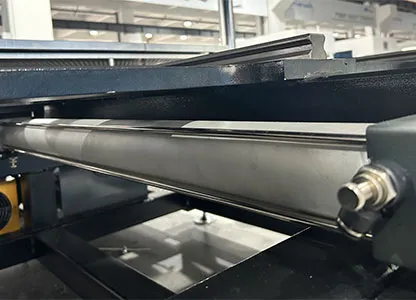

Main Air Cylinder

Main Air Cylinder

Main air cylinder to control the lower working panel in & out movement.

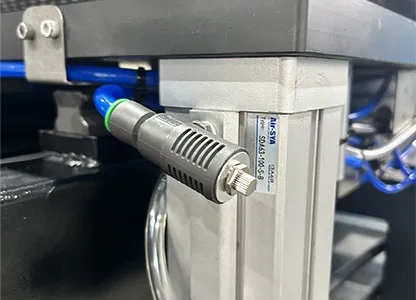

4PCS Air Cylinder

4PCS Air Cylinder

4pcs air cylinder in the 4 corner to control the lower working panel up & down movement.

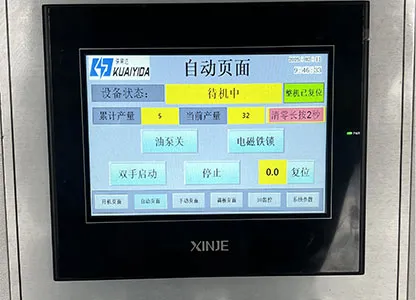

Touch Screen

Touch Screen

Touch Screen to operate machine, easy adjust machine and set new data working.

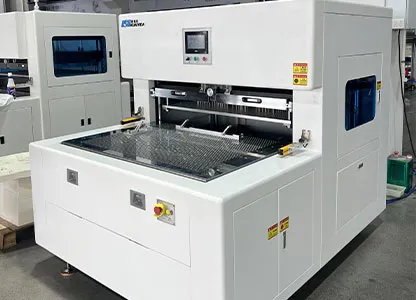

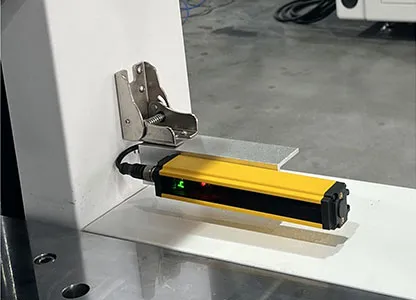

Product Sensing Grating

Product Sensing Grating

After the finished product is taken out, the lower working panel is automatically lifted, making it easier to remove the waste edge.
Product Sensing Grating

Product Sensing Grating

After the finished product is taken out, the lower working panel is automatically lifted, making it easier to remove the waste edge.

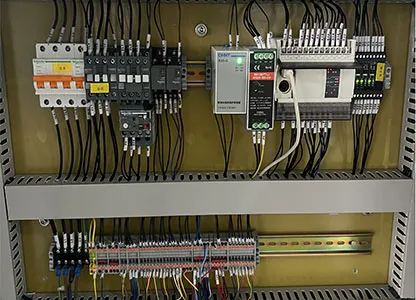

Simple and Clean Wiring

Simple and Clean Wiring

What Our Clients Say

“Two years of operation with zero downtime. Their after-sales support is always prompt.”
— Technical Manager, Turkey
“Quick changeover in 5 minutes makes small-batch production profitable for us.”
— Vietnam Printing & Packaging
“The auto collection and palletizing saved us two workers per shift. It runs non-stop with zero issues.”
— Production Manager, Spain
“Two years of operation with zero downtime. Their after-sales support is always prompt.”
Technical Manager, Turkey — Technical Manager, Turkey

Packaging & Shipping

Your Lifelong Productivity Partner: Backed by 24/7 support, full warranty, and OEM parts.
Get A Quote

FAQs Related to Full Page Blanking Machine

Can the machine be customized for unique production needs?

Yes, customization is a key service we offer. Common customizations include extended stacking systems, integration with existing production lines, and custom stripping plate designs for highly irregular shapes.

How accurate is the blanking and stripping process?

Our machines achieve a high positional accuracy, typically within ±0.2mm. This ensures that products are cleanly separated with smooth edges and that registration for subsequent processes is maintained precisely.

Do you offer the solution for clients?

Yes, according to your special requirement, we will offer full solution.

How do you pack the equipment?

We pack the equipments with vaccum bag and plywood case.

What are the key advantages over manual waste removal?

Dramatically increased efficiency, superior product quality, reduced labor costs, and enhanced worker safety.
