| Max. Product Size | 1060*760mm |
| Mini. Product Size | 100*80mm (no palletizing 35*35mm) |
| Speed | 2-3 times/min |
The KYD-1080E is a new high-speed blanking system that features Auto Collection, Auto Palletizing, which used to be done by hand.
Automatic Waste Removal

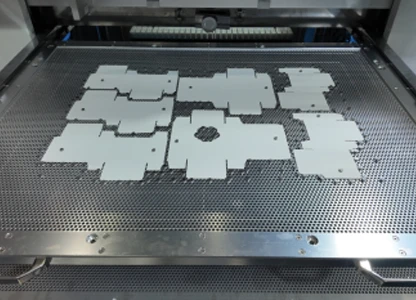

Full Page Products Collection
Full Page Stripping & Blanking
Automatic Palletizing Of Finished Product
|
Model |
KYD-1080E |
|
Max Material Stack Size |
1080*780MM |
|
Max Material Stack Height |
80MM |
|
Max. Product Size |
1060*760mm |
|
Mini. Product Size |
100*80mm (no palletizing 35*35mm) |
|
Max Pressure |
100 KN |
|
Speed |
2-3 times/min |
|
Total Power |
11kw |
|
Average Power |
6kw |
|
Voltage |
380V/3 phase/50HZ |
|
Air Consumption |
45L/min |
|
Air Pressure |
0.5-0.6Mpa |
|
Machine size |
4950*1880*2050mm |
|
Weight |
4100KGS |
Through Upper and Lower Pins to press and remove the waste of product with one-time.
Upper Pin: ∅5mm
Lower Pin: ∅10mm
Automatic lifting Gauge, precison paper stack positioning, make job easy.
Position Gauge up & down by air cylinder
We also provide complementary equipment to help you maximize your benefits. Contact us today, and our technical experts will deliver a customized solution tailored to your needs.
— Technical Manager, Turkey
— Vietnam Printing & Packaging
— Production Manager, Spain
— Technical Manager, Turkey
|
Core Competency |
Manual feeding + automatic waste removal |
|
Suitable Scenario |
Irregularly shaped products |
|
Minimum Product Size |
35X35mm |
|
Waste Removal Speed |
1-5 times/min |
| Core Competency | Auto Collection |
| Suitable Scenario | Packaging |
| Minimum Product Size | 100*80mm |
| Waste Removal Speed | 2-3 times/min |
| Core Competency | Economical waste disposal solutions |
| Suitable Scenario | Basic packaging box |
| Minimum Product Size | 35X35mm |
| Waste Removal Speed | 1-5 times/min |
